What frost heave actually is
Frost heave isn't the cold itself, it's water. Soil holds moisture, and when the ground around a foundation freezes, that water expands as it turns to ice. Expanding ice pushes outward and upward against anything in its path, including a footing that isn't seated deep enough or set in soil that drains poorly. Clay and compacted fill, both common across the Hudson Valley, hold water especially well, which is exactly the condition that makes heave worse, not better.
The movement is small in any single freeze, often not enough to notice by eye. The damage is cumulative: the same footing lifts a little more each winter it's exposed to the cycle, and by the time it's visible above ground, it has already been happening underground for one or more seasons.
A concrete footing, through one winter
A poured concrete footing is only as good as two things: how deep it was set below the active frost zone, and how well the soil around it drains. When the ground freezes, ice forms in the soil surrounding and beneath the footing. If that footing sits at or above the frost zone, or the soil around it stays saturated even at depth, the ice growing beneath it lifts the footing along with everything it carries. When the ground thaws in spring, the footing doesn't always settle back to exactly where it started, especially if the soil beneath it has shifted or lost some of its original compaction.
Repeat that across several winters and the result is the classic failing deck: a post that's crept out of level, a beam that's no longer flush with its neighbors, a gap opening where the ledger meets the house. None of that shows up the first season. It shows up on schedule, a few winters in.
A helical pile, through the same winter
A helical pile is a galvanized steel shaft with helix plates that get turned into the ground, like a large screw. Pile type, depth, spacing, and installation criteria follow the engineered plan and manufacturer requirements. Foundation performance depends on the site, design, and installation; the foundation type alone is not a guarantee against movement.
We specify engineered helical pile foundations where the site and design support their use. The engineer evaluates frost exposure and ground conditions as part of the foundation plan. Read more in our Helical Piles for Decks guide.

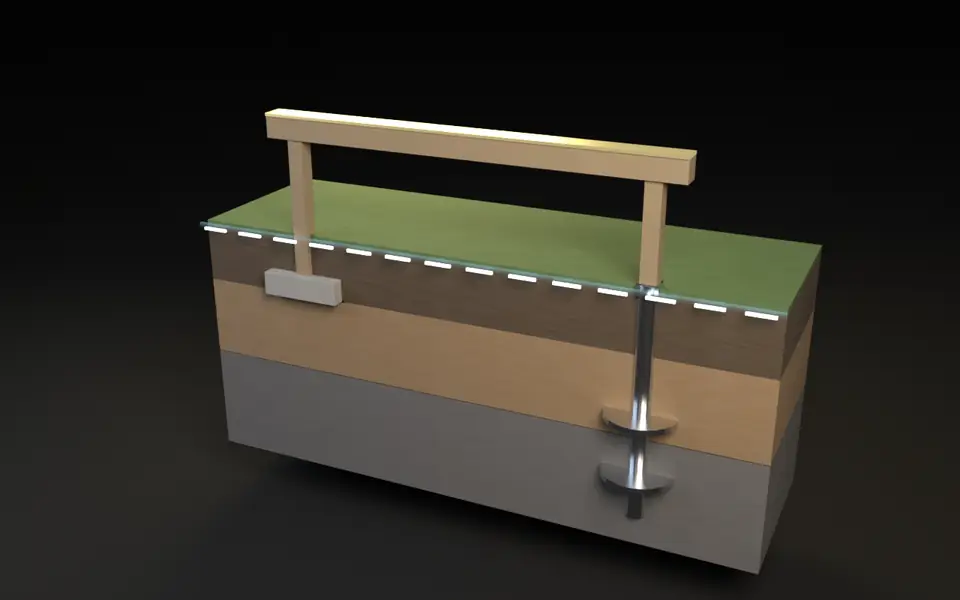

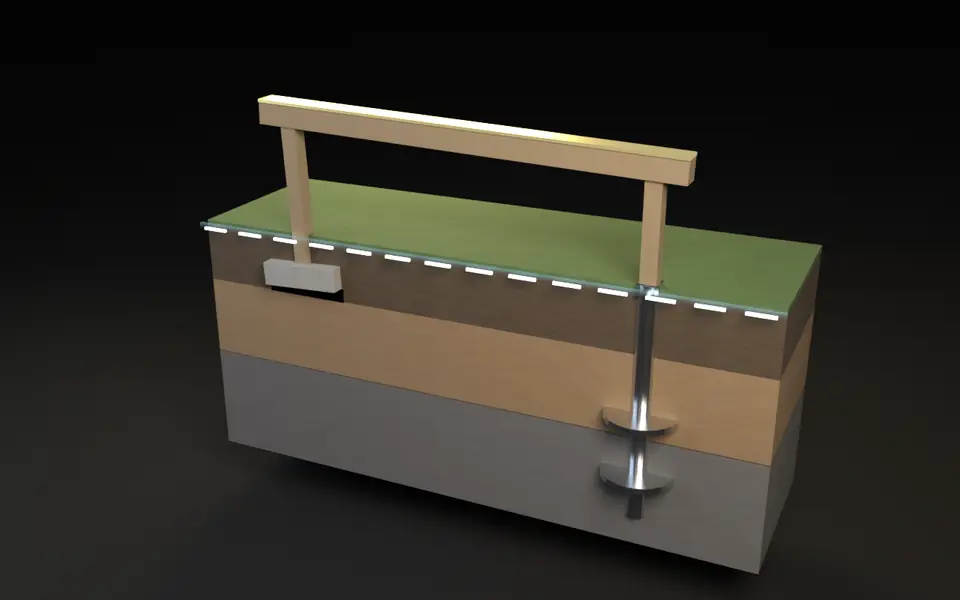

Illustrative 3D film, not to scale, of a soil cross-section through one winter. Two deck posts stand side by side: left on a concrete footing, right on a helical pile. As the frost zone forms near the surface and deepens, the concrete footing lifts and tilts; in spring thaw the frost recedes but the footing does not fully settle back. In this illustrative scenario the helical pile remains in place. Actual performance depends on site conditions, engineering, and installation.
- Frost zone
- Footing lifts
- Pile anchored below frost
Illustrative 3D film, not to scale. This scenario depicts a footing lifting and a pile remaining in place; it is not a prediction for every site or a guarantee for either foundation type. Foundation selection follows site-specific engineering.
What this means for permits and planning
Footing and foundation depth for a deck is set by your local building department as part of the permit review, not by a one-size number that applies everywhere in the Hudson Valley. Soil, slope, and frost exposure vary from lot to lot and town to town, which is why we treat foundation design as site-specific engineering rather than a lookup table. On every elevated Pinnacle project, engineering, the foundation, and permits are included in the build.
